Description

One system fits all line sizes from 1-1/2 to 24 inches in diameter. The 900R series Totalizer incorporates a user-friendly program that takes the guesswork out of meter installation.

The 900 series Totalizers are totally field programmable to provide flow rate and totalization in a multitude of user choices, such as gallons, liters, acre-feet, and British Imperial gallons.

The 900 series Totalizers are powered by a 3.6 volt lithium battery and require no additional power source, therefore, they are completely self-contained and lend themselves to being portable meters. A large alphanumeric display provides easy to read flow and total outputs. Complete meter programming can be accomplished in less than three minutes.

The electronic totalization is backed up by a mechanical counter, ensuring the installation data is maintained if a premature electrical failure should ever occur. The 900 series Totalizers are enclosed in a weather-resistant ABS enclosure with a clear Polycarbonate S2000 enclosure cover. The 900 series totalizers maintain a guaranteed accuracy to +/- 2% when installed to the manufacturer's specifications. The 900 series Totalizers are used in conjunction with a 924 Transducer for line sizes up to 24 inches.

Features

Aquamaster 900R Flowmeter

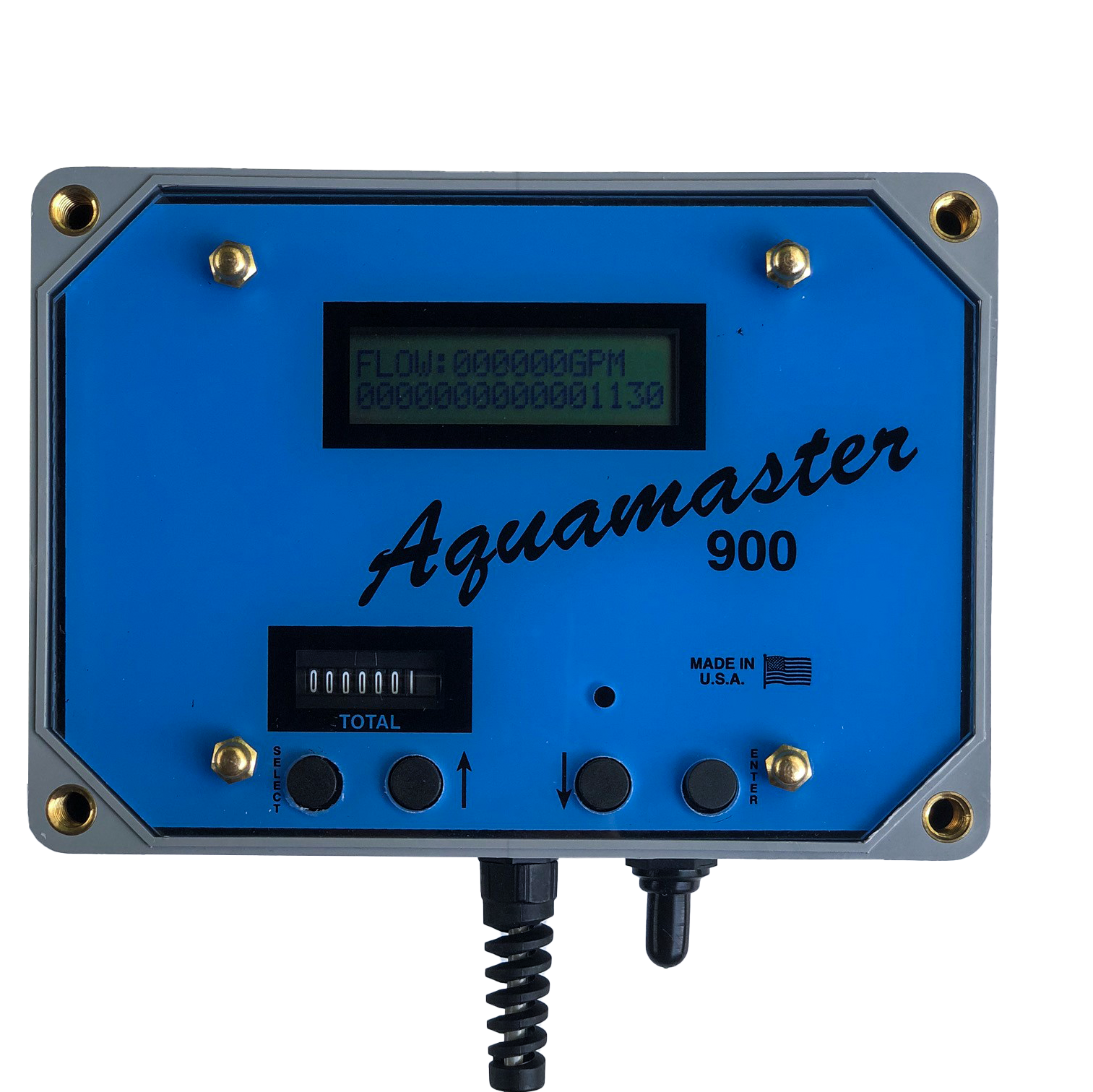

900 totalizer

LCD Display

Capture flow rate and totalization in a multitude of water unit measurements

Independently Powered

Redundancy Counter

Secondary mechanical counter for peace of mind

Weather Resistant

Built with weather-resistant ABS enclosure and clear Polycarbonate S2000 cover

Made In U.S.A

Guaranteed quality and customer service

Effortless Programming

Complete programming in less than three minutes

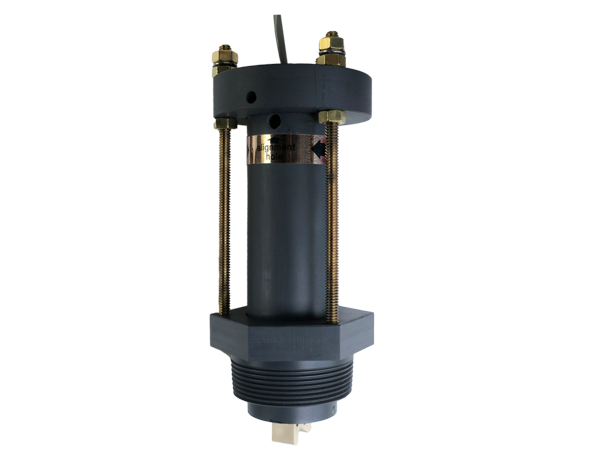

900 PVC TRANSDUCER

Line Size Range

Measure lines sizes from 1 1/2" (4 cm) to 24" (61 cm)

Long-Lasting Durability

Corrosion resistant PVC housing

Mounting Flexibility

Equipped with 15' (4.6 m) of cable for Totalizer mounting locations

Rugged Design

Replaceable Kynar® hooded impeller with radial edges to avoid snagging

Specifications

Meter Specifications

MATERIALS:

Totalizer:

Water Resistant ABS Enclosure: Dimensions – 5” x 7” x 3 ½” |
Clear Polycarbonate S2000U Enclosure Cover
Rate Display: Liquid Crystal Display
Totalization Display:
- Nonresetable Electromechanical
- LCD display
Battery Life: estimated 5 years
Environmental Temperature Range:
- Operational: -4 F to 140 F | -20 C to 60 C
- Storage: -20 F to 165 F | -40 C to 74 C

Transducer:

PVC: Type 1, GD 1, ASTM-D 1784, CL-12454-B, optional
Impeller: Kynar – 720
Shaft: Tungston-Carbide Steel: Grade C-2 (WA2), ROD-RRG-8
Bearings: Ceramic - 99.7% Alumina

PROGRAMMING:

Totalizers can be programmed to give the following readings:
- Rate = GPM
- Total = Gallons
- Total = Acre Inch
- Total = Acre Feet
- Total = British Imperial Gallons

INSTALLATION:

Full Pipe
Straight Run
- Minimum 10 Pipe diameters upstream
- 5 Pipe diameters downstream
Pipe Orientation
- To your convenience, top half of pipe
- 2 or 10 o’clock position only if small sticks are present in water
- 12 o’clock orientation preferred
- Horizontal or vertical upflows
Pipe Sizes: 1 ½ inch to 20 inch (900R)

PERFORMANCE:

Accuracy: + or – 2% with a proper installation
Flow Range: 1 to 20 feet per second
Operational Temperature: -4 F to 140 F / -20 C to 60C
Pressure 150 PSI maximum

PIPE LINE CONNECTION:

2 inch NPT coupler
Saddle mount
Straightening tube, with or without flanges
Ball valve

CABLE:

22 gauge shielded 2 conductor with drain
PVC jacketed cable with 2 position Weather Pack
15 feet provided
1000 feet maximum
